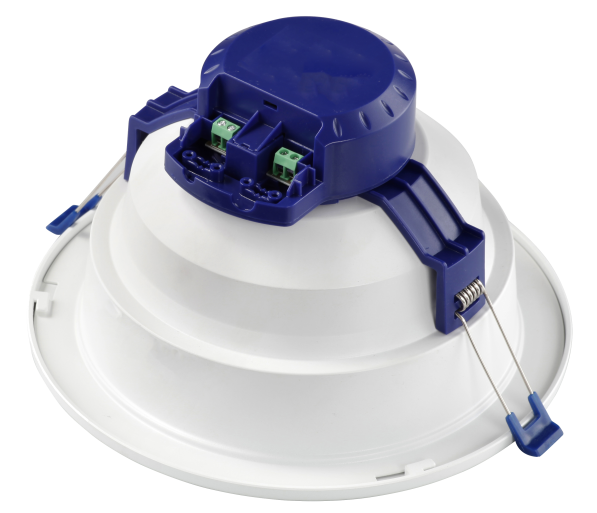

Downlighters designed to be cost effective, efficient and functional, complete with integral driver. Available in a range of cut-outs.
Tool-free assembly
Spring clip pre-assembled
10W, 20W, & 30W options available
60° Or 90° options
IP44 Option with diffuser available
22K, 27K, 3K, 4K, 5K, 65K LEDs
| Part No. | Description | Power (W) | Luminaire Lumens | Ll/cW |
|---|---|---|---|---|
| MOL-10-60D-4K | Fixed Recessed Downlight | 60° | 100mm Cut-out | 10 | 1230 | 123.0 |
| MOL-10-90D-4K | Fixed Recessed Downlight | 90° | 100mm Cut-out | 10 | 1230 | 123.0 |
| MOL-20-60D-4K | Fixed Recessed Downlight | 60° | 150mm Cut-out | 20 | 2488 | 124.4 |
| MOL-20-90D-4K | Fixed Recessed Downlight | 90° | 150mm Cut-out | 20 | 2488 | 124.4 |
| MOL-30-60D-4K | Fixed Recessed Downlight | 60° | 200mm Cut-out | 30 | 4057 | 135.2 |
| MOL-30-90D-4K | Fixed Recessed Downlight | 90° | 200mm Cut-out | 30 | 4057 | 135.2 |
| EM | Integral Emergency |
| EMLFST | Integral Emergency Self Test |
| IP44 | IP44 Rated Option with Opal Diffuser |
| IP65 | IP65 Rated |
| DD | SwitchDIM/DALI |
