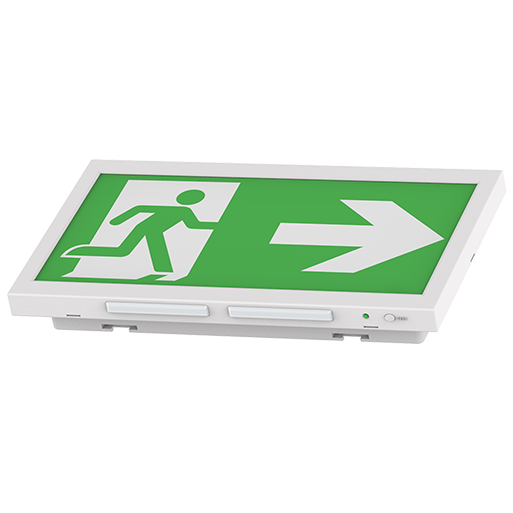

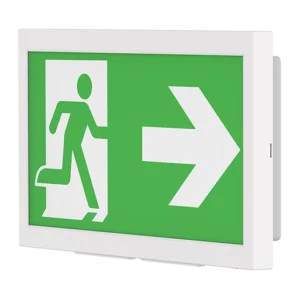

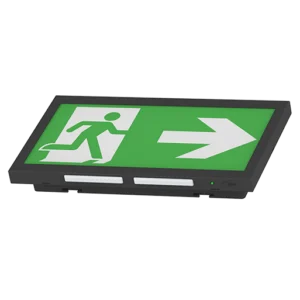

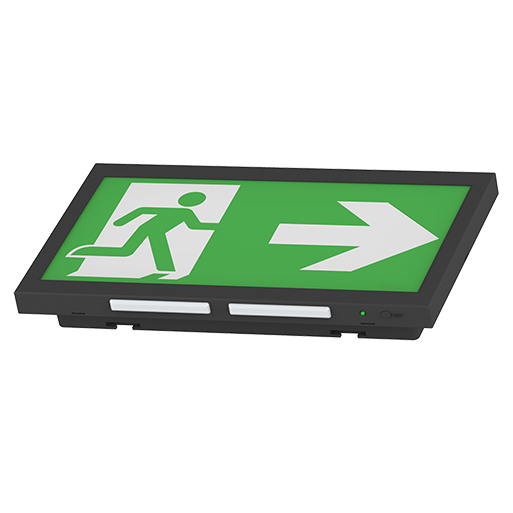

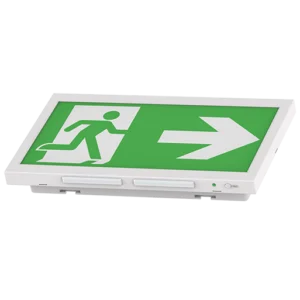

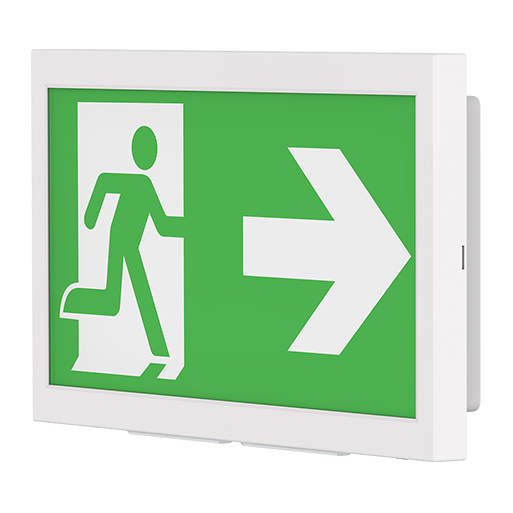

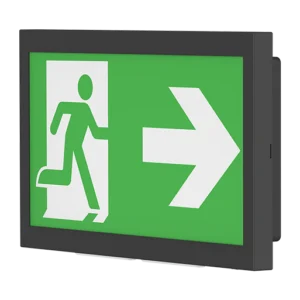

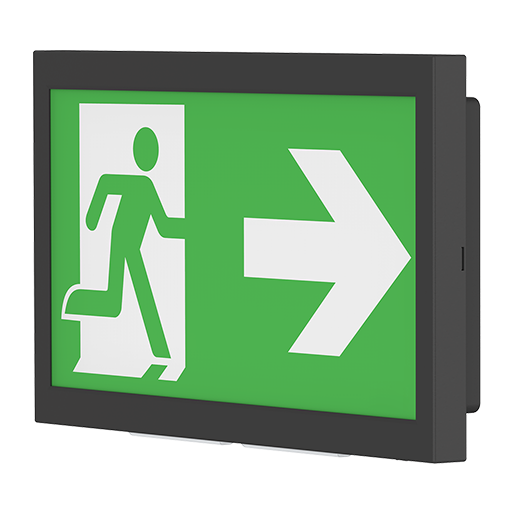

This EM Exit Box has a compact and decorative design with high luminance performance. The housing provides downlight through a carefully designed panel on the lower surface of the luminaire to assist in the illumination of the emergency escape route.
PC housing with IP40 & IK07 rating
Light guide plate, distributing light evenly

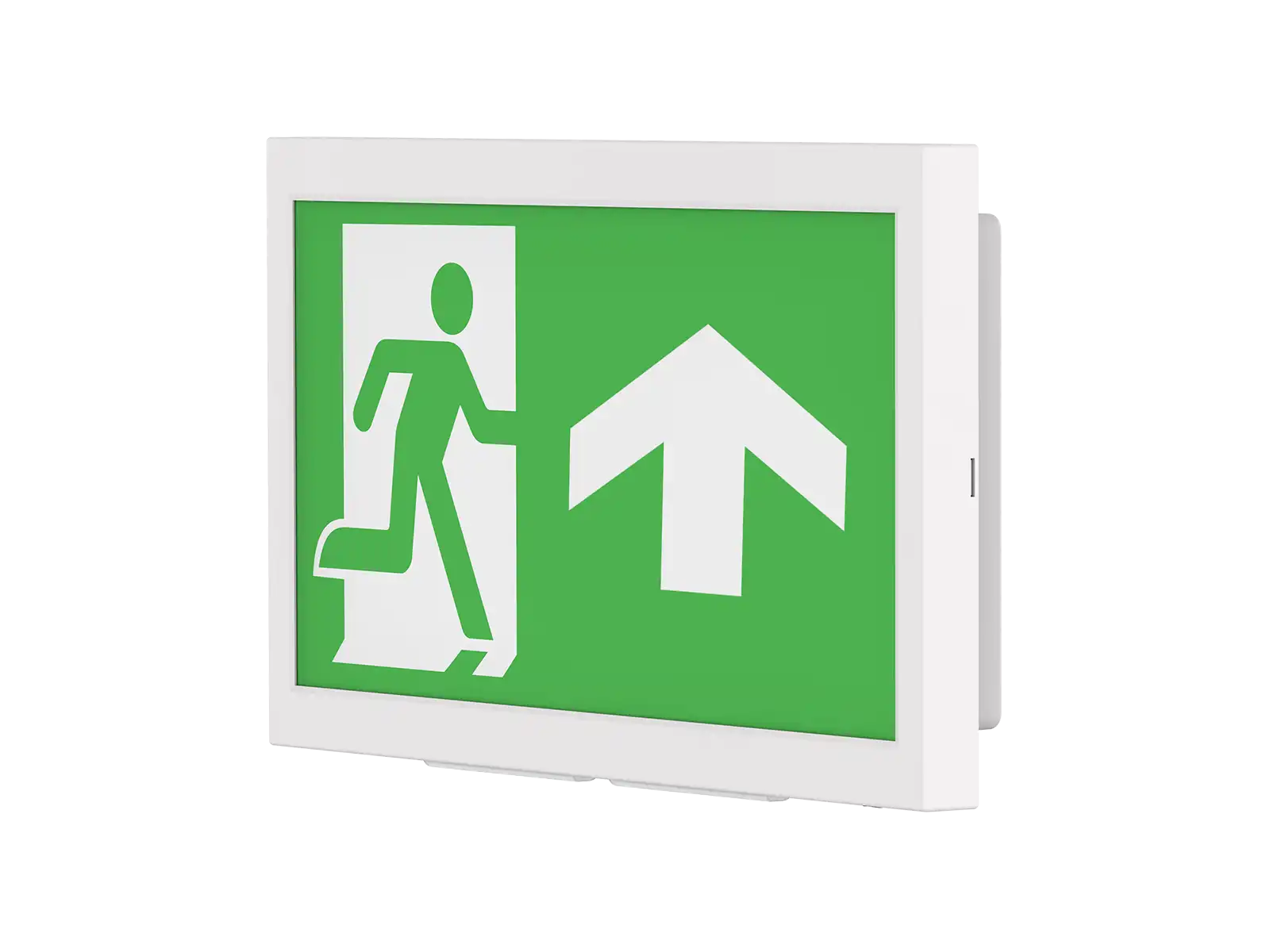

A replaceable up-pictogram legend design is included. Right, left, and down are available upon request.
Wall mounting/Recessed mounting only with 4 springs.
LiFePO4
| Part No. | Description | Mains Power (W) | Emergency Power (W) | Charge Duration | Discharge Duration | Battery |
|---|---|---|---|---|---|---|
| EXB-3-ST | Emergency Exit Box | Self Test | 2-5 | 1.5 | 24H | 3H | LiFePO4 3.2V 1500mAh |
| UP | Up Arrow Legend |
| DOWN | Down Arrow Legend |
| LEFT | Left Arrow Legend |
| RIGHT | Right Arrow Legend |
