Mintaka | ATEX Zone 2,22

Hazardous

Designed to work in harsh environments the Mintaka is a dustproof lighting fixture with splash water resistance designed for lighting of areas with danger of explosion. The lighting fixture is certified by FTZU Ostrava-Radvanice (certificate type FTZU 16 ATEX 0102X)

Spec sheet

LDT Files

BIM Files

Features

Low maintenance high output led light source
Energy efficient control
Reduced energy costs with motion sensor option
Robust, Long Life Enclosure
IP66, IK10 & Zone 2/22
Surface, Ceiling Or Wall Mounted
Screwless Three-Pole Terminal Block
L80B10 Ta30 – 70 000h
L70B10 Ta30 – 100 000h
3K, 4K, 5K LEDs Available
4000K CRI+ 80 MacAdam 3
220-240V, 50/60 Hz AC
220-240V DC

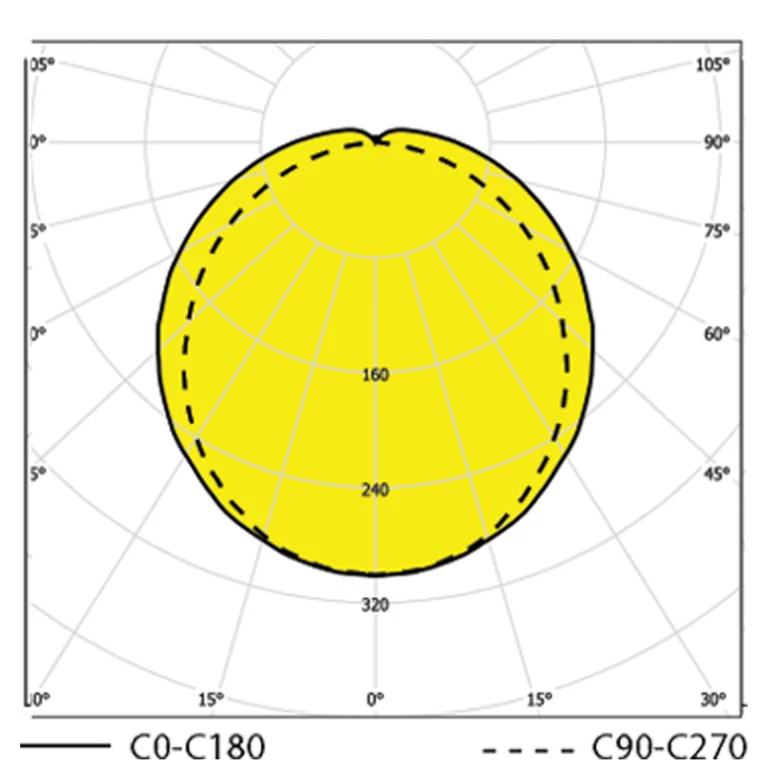

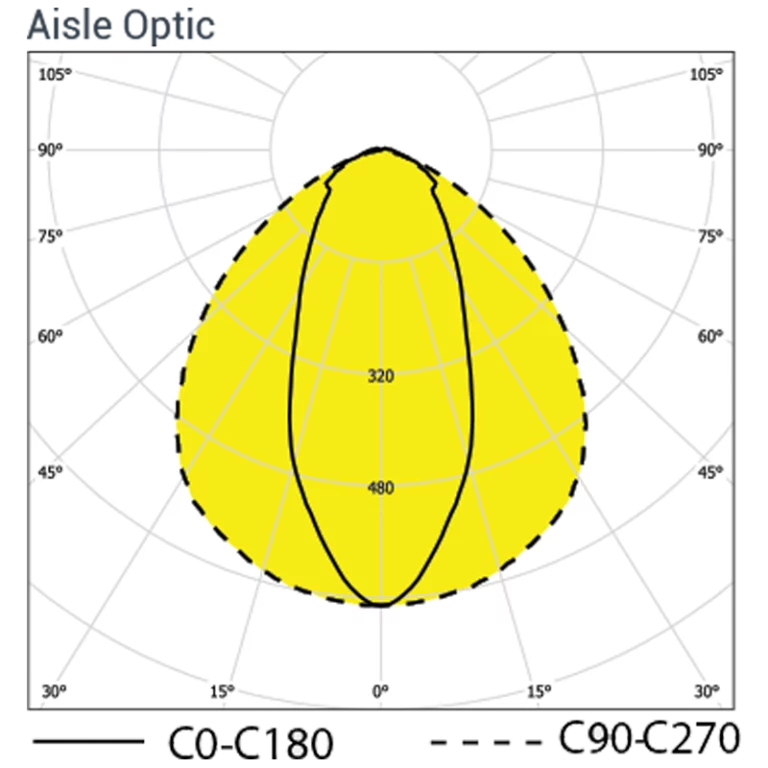

Dimensions and Photometrics

Breakdown

Part No.	Description	Dimension (A)	Mounting Space (B)	Power (W)	Luminaire Lumens	Ll/cW	Ta Max (°C)	Weight (kg)
MIN-15-67-Z2-4K	Linear Hazardous Fitting	670mm	460mm	15	2251	150.1	60	1.8
MIN-29-67-Z2-4K	Linear Hazardous Fitting	670mm	460mm	29	4357	150.2	55	1.7
MIN-29-12-Z2-4K	Linear Hazardous Fitting	1280mm	880mm	29	4503	155.3	60	3.1
MIN-58-12-Z2-4K	Linear Hazardous Fitting	1280mm	880mm	58	8715	150.3	40	3.2
MIN-44-15-Z2-4K	Linear Hazardous Fitting	1580mm	1000mm	44	6754	153.5	55	3.6
MIN-74-15-Z2-4K	Linear Hazardous Fitting	1580mm	1000mm	74	11172	151.0	45	3.8
MIN-94-15-Z2-4K	Linear Hazardous Fitting	1580mm	1000mm	94	13730	146.1	40	3.8
MIN-115-15-Z2-4K	Linear Hazardous Fitting	1580mm	1000mm	115	16311	141.8	40	3.8
MIN-74-15-Z2-A-4K	Linear Hazardous Fitting \| Aisle Optic	1580mm	1000mm	74	11932	161.2	45	3.8
MIN-95-15-Z2-A-4K	Linear Hazardous Fitting \| Aisle Optic	1580mm	1000mm	95	14960	157.5	50	3.8
MIN-117-15-Z2-A-4K	Linear Hazardous Fitting \| Aisle Optic	1580mm	1000mm	117	17903	153.0	40	3.8

Options

EM	Integral Emergency	ATEX	II 3G Ex nR IIC T6 Gc
DD	SwitchDIM/DALI	ATEX	II 3D Ex tc IIIC T80°C Dc
MW	Integral Microwave Sensor
SK	Suspension Kit
POL	Pole Bracket Kit
WALL	Wall Bracket Kit
CAGE	Protective Cage
PLG	Sealing Plugs
