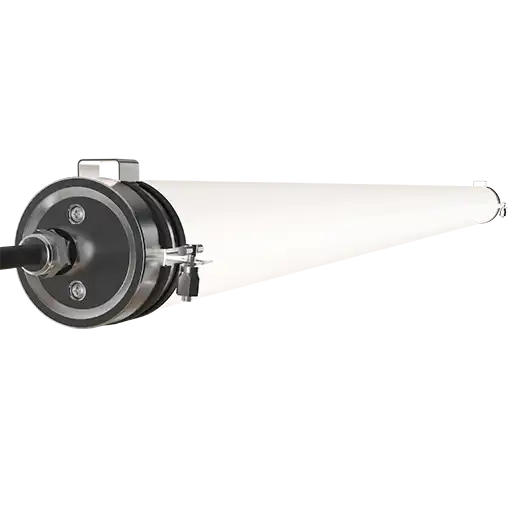

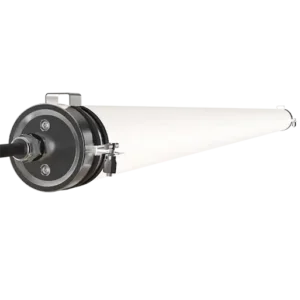

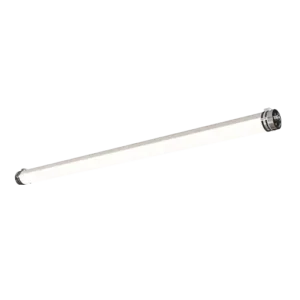

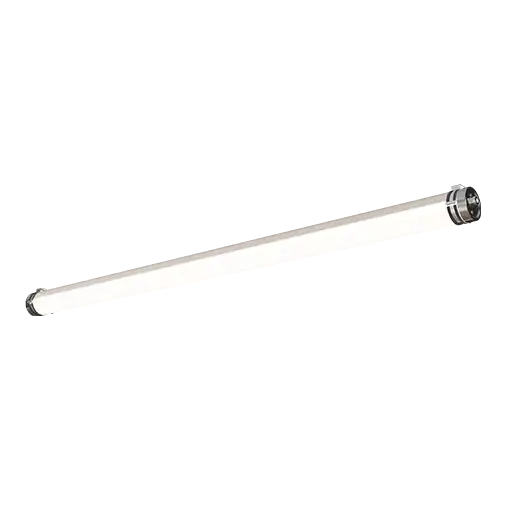

The Pit Eco is an IP69K-sealed luminaire for rail and heavy industry environments. The end caps are fabricated from 316 stainless steel. The housing is polycarbonate or acrylic depending on agent exposure, with an IK10 rating and features flexible mounting/wiring options.
• Opal or clear Diffuser options
• PC or PMMA options
• 316L Stainless Steel End caps
• 316L Stainless Steel bracketry
• Flexible mounting options
• Through wire versions available
• Cable options available
• Integral EM options available
• Black 2M PVC Cable standard
• UV Stabilised material
• 22K, 27K, 3K, 4K, 5K, 65K LED Options
| Part No. | Description | Power (W) | Luminaire Lumens | Ll/cW |
|---|---|---|---|---|
| PEC-60-15-4K-FRPC | PIT ECO 5ft Frosted Polycarbonate | 60 | 7200 | 120.0 |
| PEC-60-15-4K-FRPM | PIT ECO 5ft Frosted PMMA | 60 | 7200 | 120.0 |
| PEC-60-15-4K-CLPM | PIT ECO 5ft Clear PMMA | 60 | 8400 | 140.0 |
| SU | Suspension Kit (2M) |
| FLX | Flex Options |
