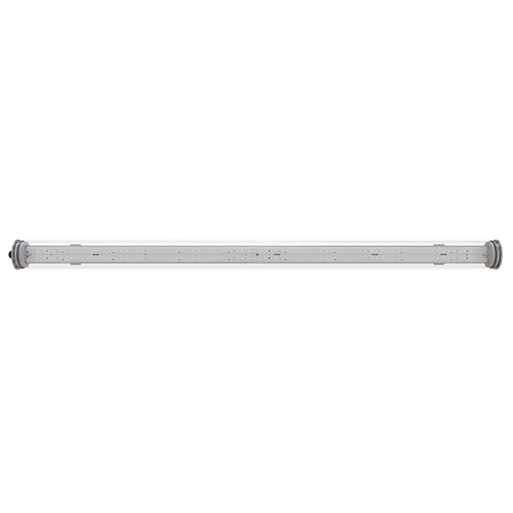

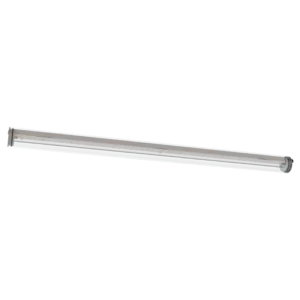

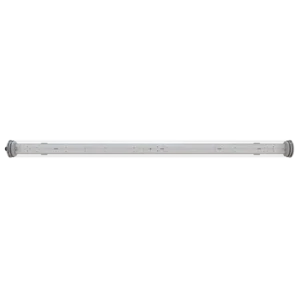

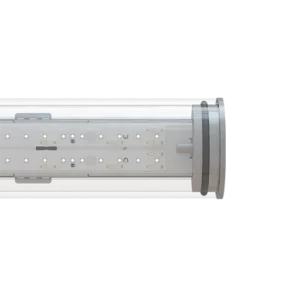

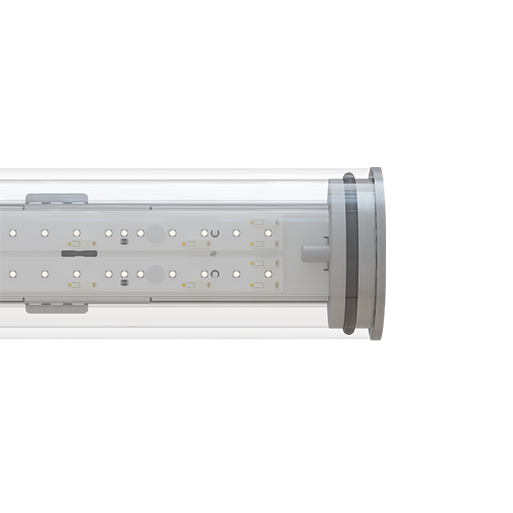

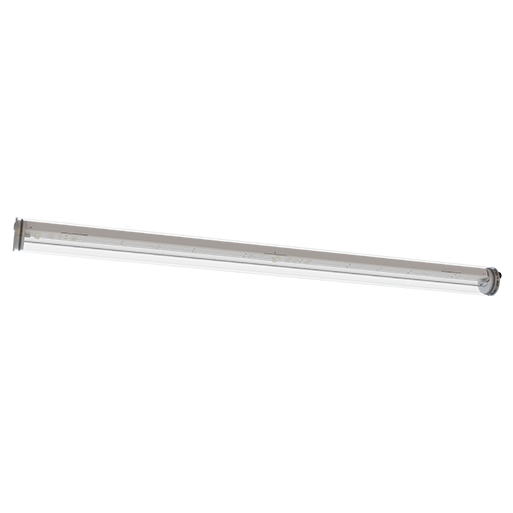

An IP69K sealed luminaire for harsh environments. The end caps are fabricated from 304 stainless steel or aluminium. The housing is either polycarbonate or acrylic depending on agent exposure. It is IK10 rated for all versions and features flexible mounting options
IP69k
IK10+

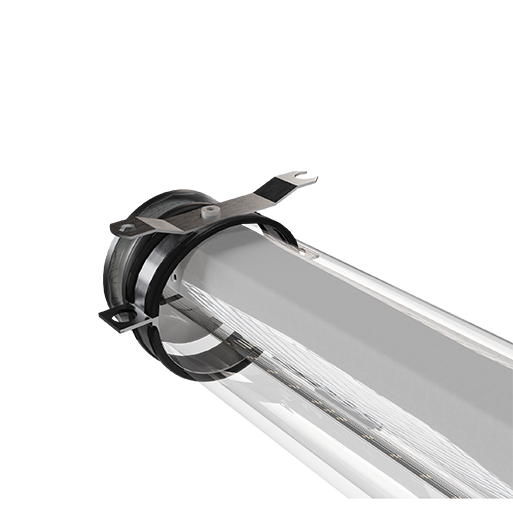

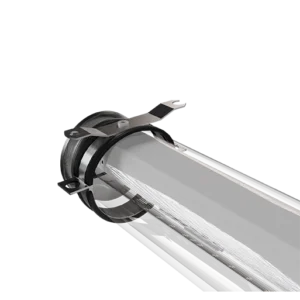

Adjustable bracket mounts in stainless steel

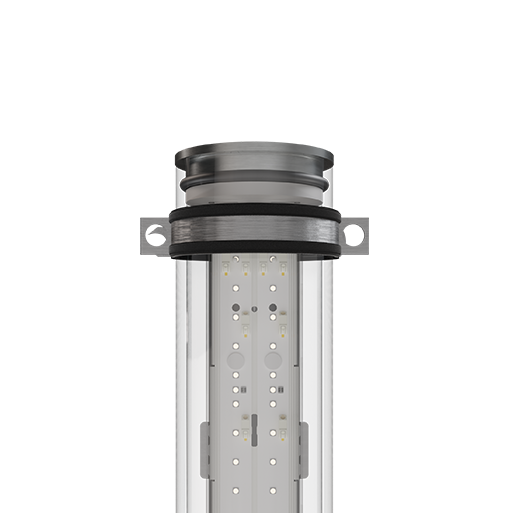

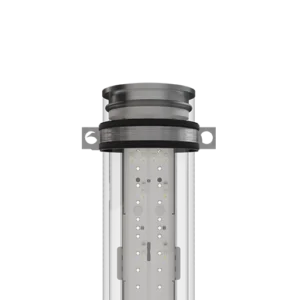

Stainless steel or aluminium end caps
Dimmable
Directional light
22K, 27K, 3K, 4K, 5K, 65K LEDS
| Part No. | Description | Power (W) | Luminaire Lumens | Ll/cW |
|---|---|---|---|---|
| PIT-32-IP69K-4K | PIT light | 1070mm | 32 | 4480 | 140.0 |
| PIT-50-IP69K-4K | PIT light | 1270mm | 50 | 7000 | 140.0 |
| PIT-68-IP69K-4K | PIT light | 1570mm | 68 | 9384 | 138.0 |
| OPT | Opal Tube |
| CLT | Clear Tube |
| DD | DALI/switchDIM |
| EM | Integral emergency |
| 27K | 2700K |
| 3K | 3000K |
| 5K | 5000K |
| 65k | 6500K |
| Available in Red, Blue, Green, Yellow or Amber LED Colour |
