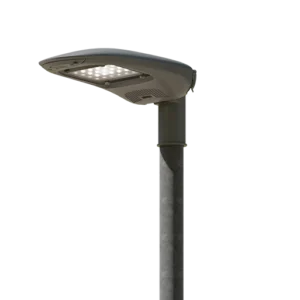

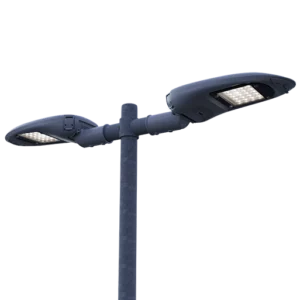

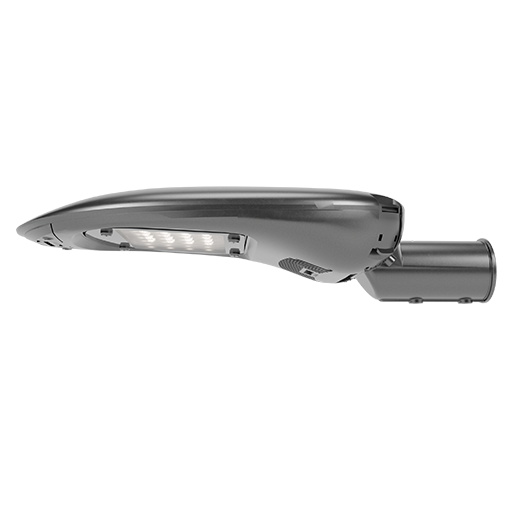

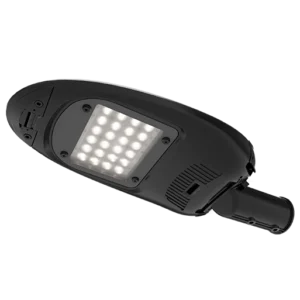

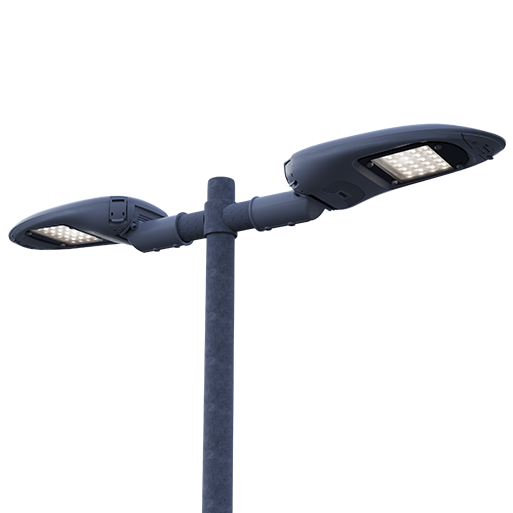

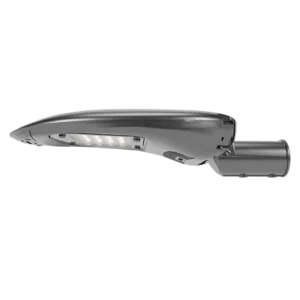

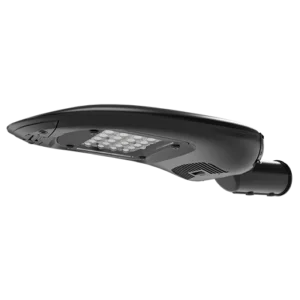

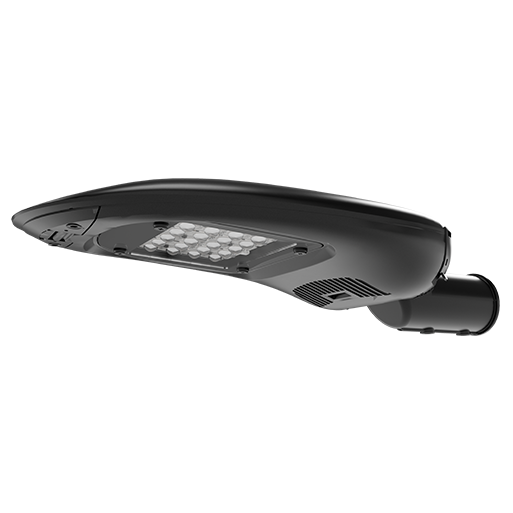

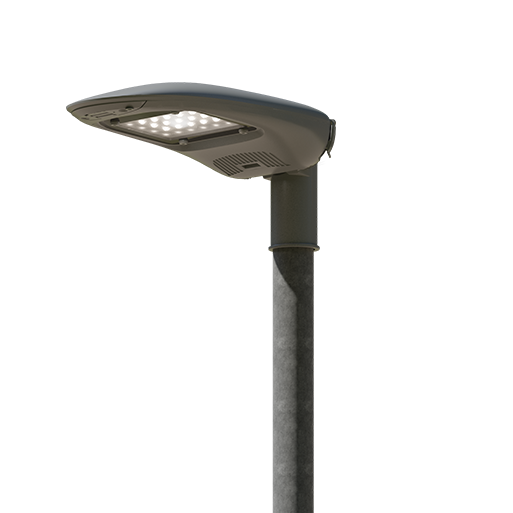

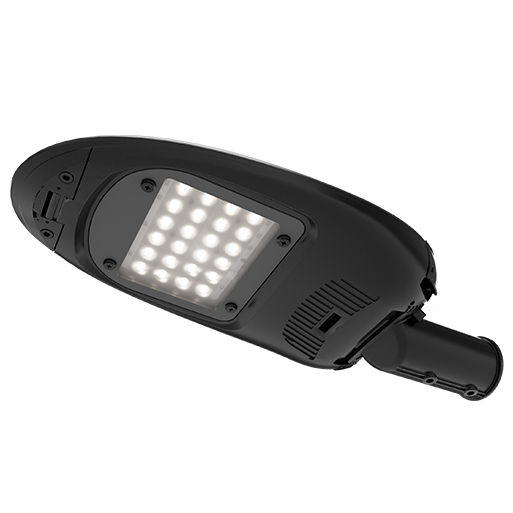

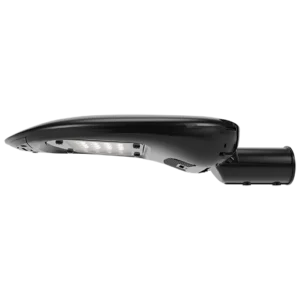

The Visage is a modern street lighting luminaire made from die-cast aluminium. The luminaire can be supplied in a range of outputs and optional extras. It is IP66 rated and is made with a die-cast aluminium body
• High intensity die-cast aluminium body
• Quick access for easy maintenance
• Available with NEMA photocell
• Grey housing as standard
• Bespoke RAL finishes available
• IP66
• IK08
• Post top entry
• Multi-wattage
• T3 as standard (T4B available)
• 22K, 27K, 3K, 4K, 5K, 65K LED Options
| Part No. | Description | Power (W) | Luminaire Lumens | Ll/cW |
|---|---|---|---|---|
| VI3S-14-40-4K | Multi Wattage Grey Street Light | Small | 14 - 40 | 1880 - 5375 | 134.4 |
| VI3S-50-75-4K | Multi Wattage Grey Street Light | Small | 50 - 75 | 6720 - 10080 | 134.4 |
| VI3S-75-105-4K | Multi Wattage Grey Street Light | Small | 75 - 105 | 10080 - 14112 | 134.4 |
| VI3S-14-40-T4B-4K | T4B Multi Wattage Grey Street Light | Small | 14 - 40 | 1880 - 5375 | 134.4 |
| VI3S-50-75-T4B-4K | T4B Multi Wattage Grey Street Light | Small | 50 - 75 | 6720 - 10080 | 134.4 |
| VI3S-75-105-T4B-4K | T4B Multi Wattage Grey Street Light | Small | 75 - 105 | 10080 - 14112 | 134.4 |
| DD | DALI/Virtual Midnight |
| N | NEMA Photocell |
| 60 | 60mm Collar |
| 76 | 76mm Collar |

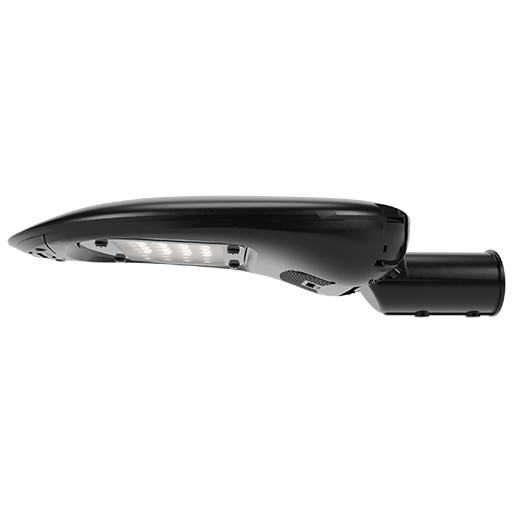

| BK | Black Finish |
