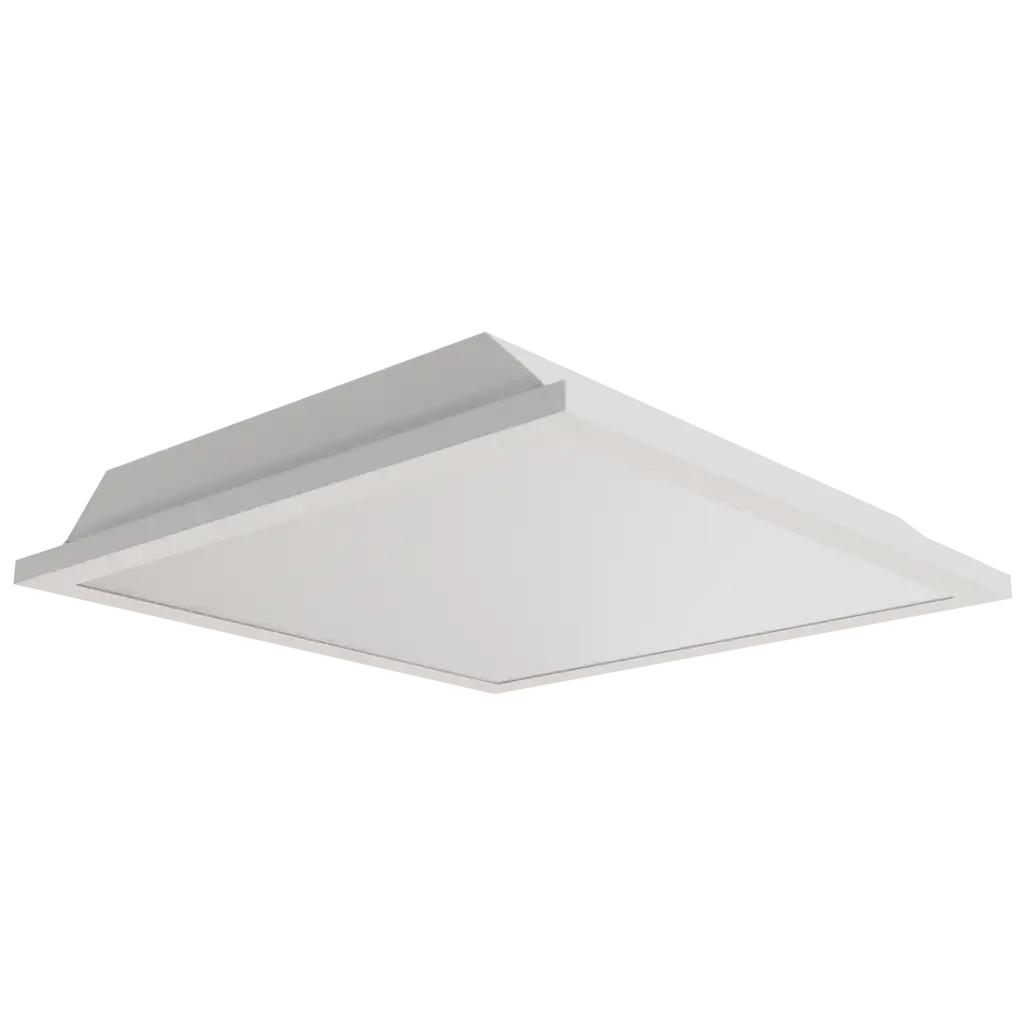

The Celestial provides a high quality lighting solution , where 15mm and 24mm exposed T-bar ceilings are used. It utilises back mounted LEDs for superior light distribution
• Luminaire suitable for 15mm and 24mm exposed T grid system
• Manufactured from mild steel
• The LEDs are back mounted within the luminaire for superior light distribution
• IP20
• Loop in, loop out connection block
• Up to 8 x 2.5mm² terminals
• 22K, 27K, 3K, 4K, 5K, 65K LEDs
| Part No. | Description | Power (W) | Luminaire Lumens | Ll/cW |
|---|---|---|---|---|
| CE-20-55-4K | Slim Panel Luminaire | 500 x 500 | 20 | 2621 | 131.1 |
| CE-20-4K | Slim Panel Luminaire | 600 x 600 | 20 | 2641 | 132.1 |
| CE-27-4K | Slim Panel Luminaire | 600 x 600 | 27 | 3458 | 128.1 |
| CE-20-123-4K | Slim Panel Luminaire | 600 x 600 | 20 | 2675 | 133.8 |
| CE-27-123-4K | Slim Panel Luminaire | 1200 x 300 | 27 | 3428 | 127.0 |
| CE-54-126-4K | Slim Panel Luminaire | 1200 x 600 | 54 | 6743 | 124.9 |
| EM | Integral Emergency |
| EMST | Integral Emergency Self Test |
| CF | Corridor Function |
| MWP | Remotely Programmable Microwave |
| WL | Wireless Control System |
| WLEM | Wireless Monitored Emergency |
| DD | SwitchDIM/DALI |
| IP40 | IP40 option |
| TPA | TPA Material |
| UGR 19 | UGR 19 |
