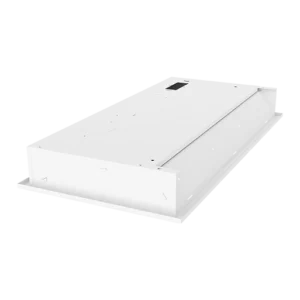

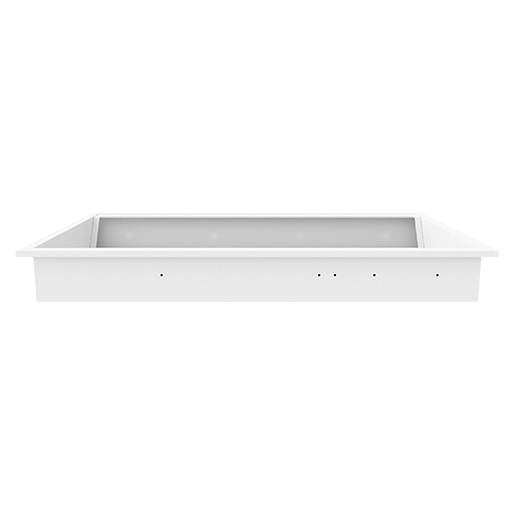

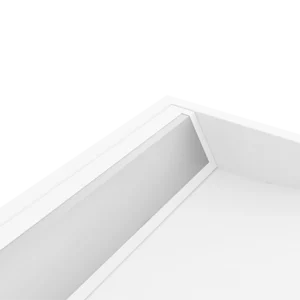

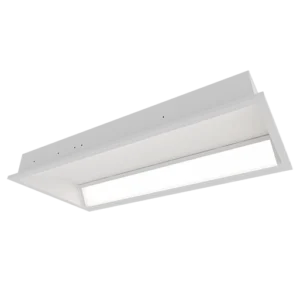

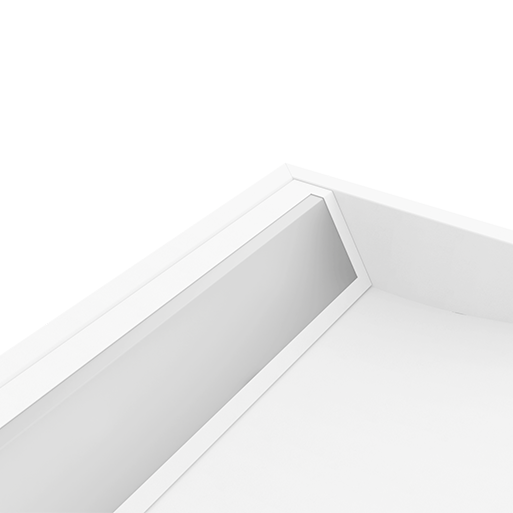

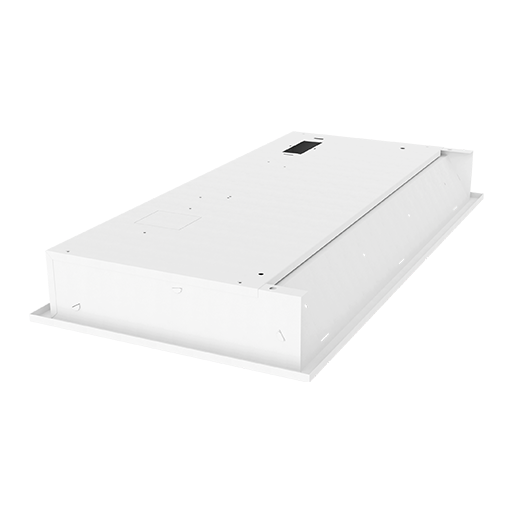

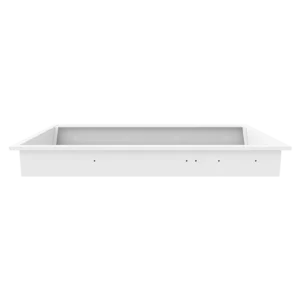

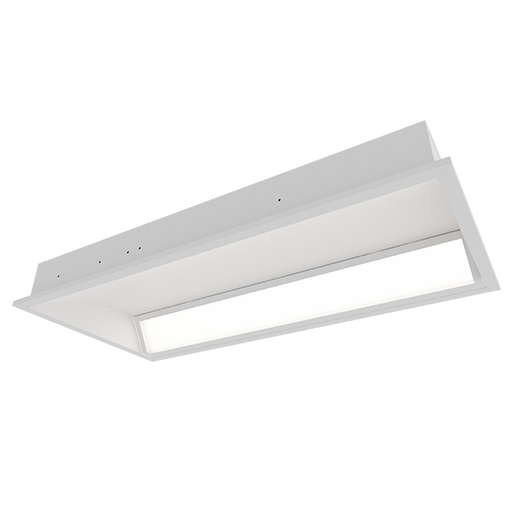

The Wall Wash illuminates with a subtle lighting effect, highly efficient it has been designed to throw light onto the wall from above and is an ideal solution for illuminating products in a retail application
Quality branded LED chips and drivers
Cool running for prolonged life
Highly efficient diffuser
Dimming options
Surface version available
IP20
Loop in, loop out connection block
Up to 8 x 2.5mm² terminals
22K, 27K, 3K, 4K, 5K, 65K LEDs
| Part No. | Description | Power (W) | Luminaire Lumens | Ll/cW |
|---|---|---|---|---|
| WW2-25-63-4K | Recess Mounted T Bar Fixture | 600 x 300 | 25 | 3332 | 133.3 |
| WW2-25-66-4K | Recess Mounted T Bar Fixture | 600 x 600 | 25 | 3332 | 133.3 |
| WW2-50-123-4K | Recess Mounted T Bar Fixture | 1200 x 300 | 50 | 6665 | 123.4 |
| WW2-50-126-4K | Recess Mounted T Bar Fixture | 1200 x 600 | 50 | 6665 | 123.4 |
| EM | Integral Emergency |
| EMLFST | Integral Emergency Self Test |
| DD | SwitchDIM/DALI |
| OW | Off White Paint |
