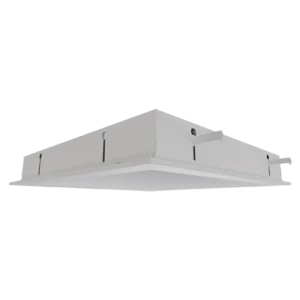

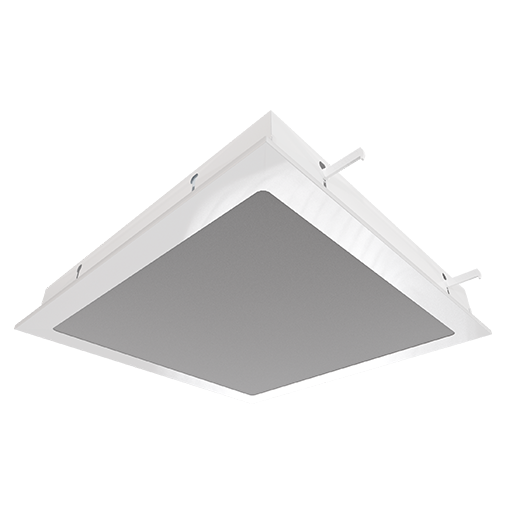

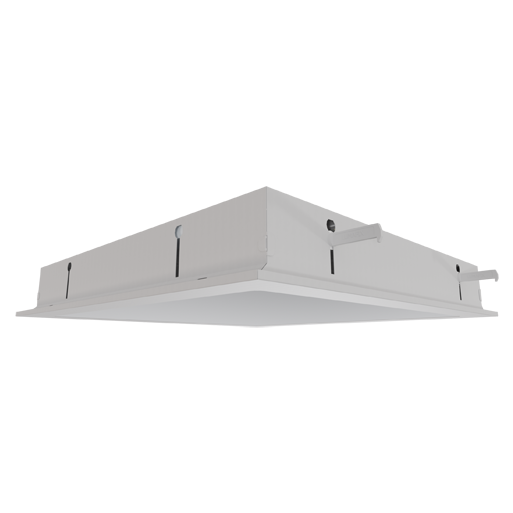

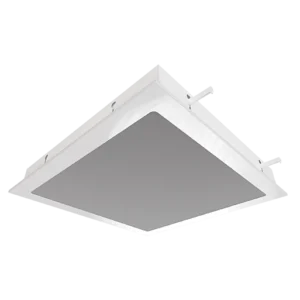

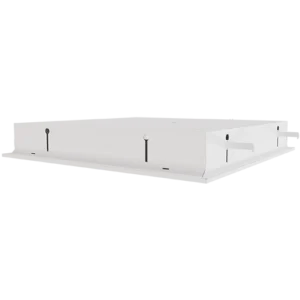

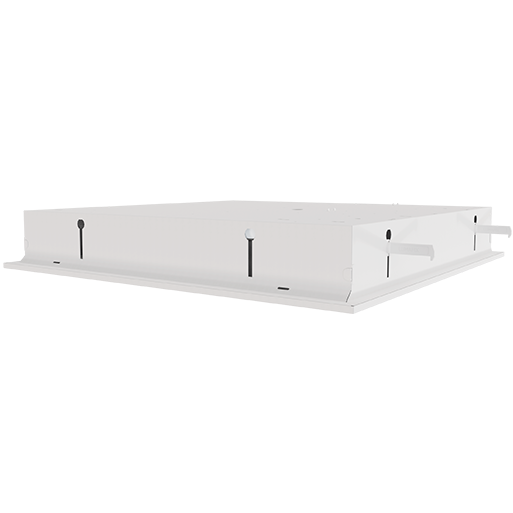

The Universal Celestial is an optimally designed luminaire backlit for higher light output efficiency. A transmissive diffuser expresses over 88% of the generated LED light. These features combine to give a superior light distribution compared to typical edge light panels
Manufactured from mild steel
Constant output driver
300 X 300 version available
Available for all ceiling types
IP20
Loop in, loop out connection block
Up to 8 x 2.5mm² terminals
22K, 27K, 3K, 4K, 5K, 65K LEDs
| Part No. | Description | Power (W) | Luminaire Lumens | Ll/cW |
|---|---|---|---|---|
| UCE-20-55-4K | Backlit Panel Luminaire | 500 x 500 | 20 | 2621 | 131.1 |
| UCE-20-4K | Backlit Panel Luminaire | 600 x 600 | 20 | 2641 | 132.1 |
| UCE-27-4K | Backlit Panel Luminaire | 600 x 600 | 27 | 3458 | 128.1 |
| UCE-20-123-4K | Backlit Panel Luminaire | 1200 x 300 | 20 | 2675 | 133.8 |
| UCE-27-123-4K | Backlit Panel Luminaire | 1200 x 300 | 27 | 3428 | 127.0 |
| UCE-54-126-4K | Backlit Panel Luminaire | 1200 x 600 | 54 | 6743 | 124.9 |
| EM | Integral Emergency |
| EMST | Integral Emergency Self Test |
| CF | Corridor Function |
| MWP | Remotely Programmable Microwave |
| WL | Wireless Control System |
| WLEM | Wireless Monitored Emergency |
| DD | SwitchDIM/DALI |
| TPA | TPA Material |
| UGR 19 | Glare Control To Meet UGR19 |
